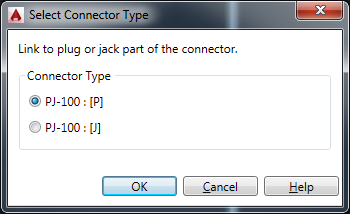

Select Connector Type Dialog Box

Link an Inventor connector part to either a plug or jack connector component in AutoCAD Electrical toolset.

Option

Connector Type

Specifies whether to link an Inventor connector part to the plug or jack part of a connector.
