We have improved the calculation of surface fillet extensions when Flow Control is set to Extend (at the start or end of the fillet). The new extensions follow the shape of the fillet in a more natural manner. In previous releases, extensions were linear (straight).

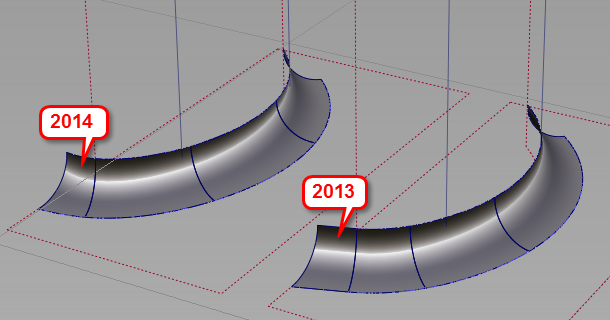

Comparison of a surface fillet extension in Alias 2014 versus 2013.
This enhancement has been implemented in the following tools:
- Surfaces > Multi-Surface Fillet > Surface Fillet
- Surfaces > Multi-Surface Fillet > Symmetric Fillet
- Surfaces > Rolled Edge > Fillet Flange
- Surfaces > Rolled Edge > Panel Gap
