Visualize the deviation between mesh-surface, surface-surface or mesh-mesh

How to show the deviation (distance) between a set of meshes and a set of NURBS surfaces as a colored error map on the surfaces. How to show the deviation (distance) between two sets of meshes or two sets of NURBS surfaces as a colored error map.

Objects in reference layers can be selected from within this tool.

Display a Mesh-to-Surface deviation error map

1. Select the Evaluate > Deviation Map tool
2. Select one or more surfaces, then click the Accept button.
3. Select one or more meshes, then click the Go button.

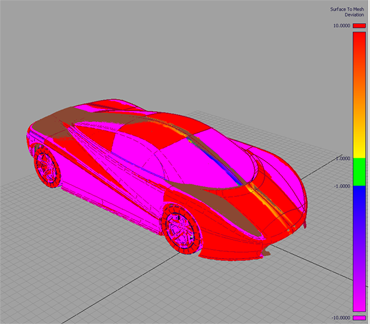

   The deviation error map appears on the surfaces and a color ramp (deviation ramp) is displayed.



Display a Surface-to-Surface deviation error map:

1. Choose Evaluate > Deviation Map.
2. Select one or more surfaces.
3. Press the Accept button.
4. Press the Surfaces button.
5. Select the second set of surfaces.
6. Press the Go button.

   The deviation error map appears on the first set of surfaces and a color ramp (deviation ramp) is displayed.

Display a Mesh-to-Mesh deviation error map:

1. Choose Evaluate > Deviation Map.
2. Press the Mesh button
3. Select one or more meshes.
4. Press the Accept button.
5. Select the second set of meshes.
6. Press the Go button.

   The deviation error map appears on the first set of meshes and a color ramp (deviation ramp) is displayed.


   Note:

   The first set of meshes or surfaces can also be selected before entering the tool.

The color ramp

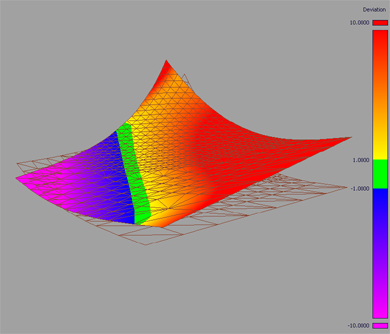

The color in the center of the ramp (green) identifies regions where the deviation is within an Acceptable Distance value. The colors at both ends of the ramp identify regions where the deviation is above a certain maximum value (Ramp Distance) in either direction. Between these two values, the surface displays intermediate colors as shown on the ramp.

Adjust the display of the color ramp

The color distribution on the ramp can be adjusted as follows:

1. Double-click the tool to open the option box.

2. Use the Acceptable Distance and Ramp Distance slidersto modify the tolerance bands in the color scale.

   The deviation error map on the surface(s) updates.

   Note:

   The Ramp Distance is the maximum distance between surface and mesh shown on the color ramp. It should be kept larger than the Acceptable Distance.

3. Turn on the Absolute Value Ramp option if you are not concerned about the direction of the deviation and only want to see absolute deviation values.
4. Turn on the Use Bands option if you want the ramp to display solid bands of color instead of slowly varying colors.

The deviation map

The deviation error map is persistent during tumbling or other view manipulation. Modifications to the geometry cause the error map to update.

To remove the map, select the Shading Off button in the Diagnostic Shading section of the Control Panel, or any of the other Diagnostic Shading buttons.
