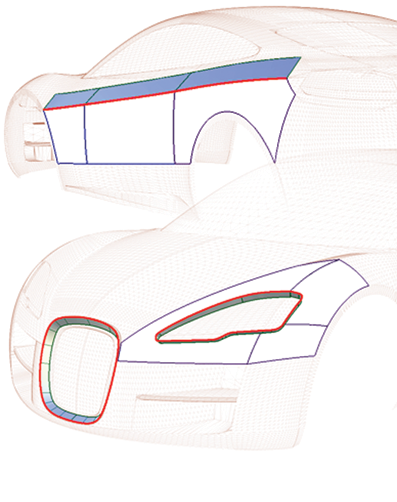

The Multi-Surface Draft tool creates a flange surface along an edge, or a chain of edges. Use Explicit Control or the Bezier option to control the surface quality. It can create surfaces on both sides of the curve, either as a pair, or as a single surface. |
The Panel Gap tool creates the many surfaces that define a finished gap, along a set of tangent continuous surface curves, including the flanges (that define the edges), the fillets between the panel and the edges, and an optional close-out surface at the bottom of the gap.
