The Curvature tool in the control panel has a new option called Show Absolute. Check it on to see only the absolute minimum and maximum radii over all the curvature plots in U and/or V.

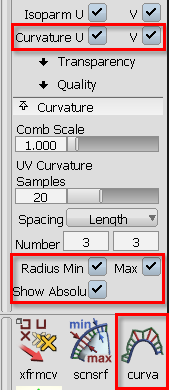

To see the absolute minimum and maximum radius:
- A curve or surface must be selected.
- Curvature U and/or Curvature V must be checked on in the Display section of the control panel.
- Radius Min and/or Max must be checked on in the Curvature section of the control panel.

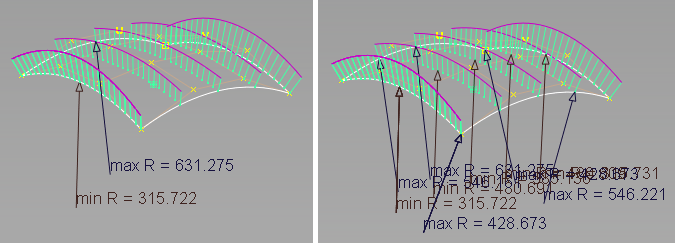

Left: Show Absolute = ON; Right: Show Absolute = OFF
