Creates a surface by sweeping one or more profiles along one or more path curves (rails). The profiles are maintained relative to the coordinate system, the path normal, or defined vectors.
Use Profile to create and modify extruded surfaces with maximum control over section transition and location.
A profile is composed of one or more planar curves. It can have sharp bends and can be closed.
If several profiles are used, they can have different shapes but must have a similar structure (segmentation between sharp bends or number of spans). Each profile can have an individual position and orientation relative to the rail curve. If the curves within a profile set are disconnected (not G0), it is best to create a separate profile surface for each element of the set.

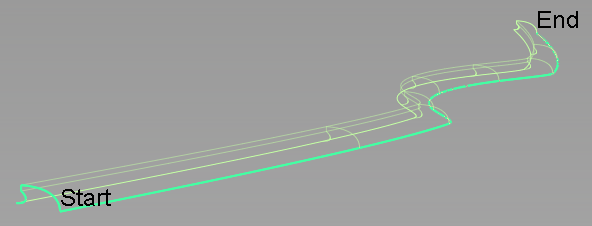

Rails can include curves and surface curves. Rails must be position and tangent continuous. They can be closed. You can use multiple tangent continuous rail curves with chain select or by making additional selections before accepting the rail input.
Sweep profile curves along one or more path curves
The profile frame is the coordinate system used to define the profile section orientation and transformations along the path.
Select how the profile frame travels or sweeps along the path.

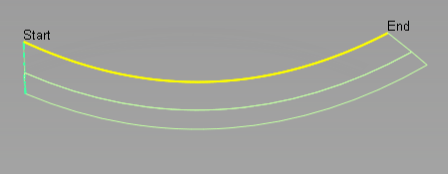

Parallel – The profile frame is set to travel parallel to profile plane.

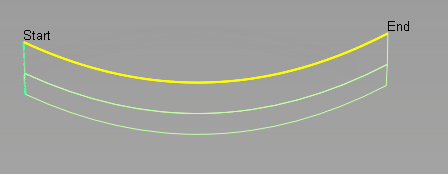

Radial – The profile frame pivots to maintain the same angle relative to the rail curve normal.

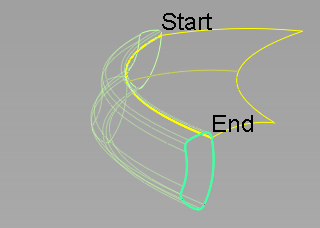

Surface Normal – The orientation of the profile frame is determined by the normal direction of an adjacent surface at the closest point between the rail curve and the surface.
This option specifies the type of blend between multiple profiles (either from input curves, or manipulators). It determines the shape of the surface isoparms that run in the direction of the rail curve.
Linear – Joins the profiles with straight lines.
Local – Provides smooth transitions around the locations of the profiles.
Global – Provides a smoother overall shape, but sometimes leads to excessive undulations.
Limited – Attempts to control the shape of the surface so that it stays within the range of the profile scales. This setting avoids the over and under shooting that sometimes occur with Global or Local transition type.
Select this option to display control options which allow you to explicitly specify the degree and number of spans of the profile surface in both the U and V direction.
Select this option to use the input geometry for the profile parameterization.
Degree of the profile surface in the U direction (along the rail curve).
Degree of the profile surface in the V direction (along the profile section).
If Surface Type is set to Multiple Surfaces, this value specifies the maximum number of spans for each surface in profile surface group.

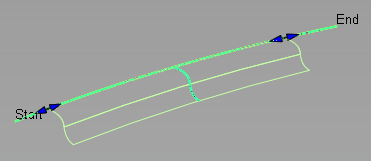

Select this option to define a portion of each rail as input for the profile surface using range manipulators, or using the Start and End sliders.
Setting the Start and End sliders to 0.0 and 1.0 resets the original extent.
Multiple Surfaces – A separate surface is created for each of the profile curves you selected, and the surfaces are grouped.
Single Surface – A single surface is built.
This option only appears if Surface Type is set to Multiple Surfaces. If it is selected, each surface will be a Bézier patch.
Bézier patches have a single span, and their maximum degree in the U direction is set through the Explicit Control section. The default is the degree of the rail curve.
To prevent adding spans that are too close to each other, the system will not allow spans of a linear distance less than the Short Edge Tolerance.
If this option is selected, selecting a surface curve also selects all other surface curves that are tangent continuous with it.
