Object Edit > Insert

Adds an edit point to a curve, or an isoparametric curve or curve-on-surface to a surface.

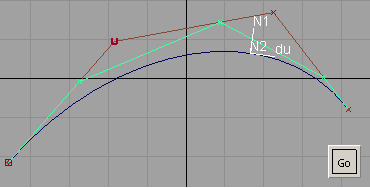

The Insert tool shows the new hull shape in green, enabling users to insert CVs with greater visual control over the shape of the curve.

Ensure that display of CVs and hulls are turned on to benefit from this feature.

Procedures

Insert additional edit points/isoparametric curves into a curve or surface

Align, combine, or split objects

Insert Options

Type

Span – Adds an edit point to a curve, or an isoparametric curve to a surface, creating an extra span.

Curve on surface – Adds a curve-on-surface at a specific U or V value on a surface. This option does not apply to curves.
