Auxiliary Link
Connect two sequential or non-sequential points with a straight line. An auxiliary link is not part of the subassembly geometry, but other geometry can be created from it.
Specify the following parameters in the Properties panel.
Link | |
Link Number | Specifies the link number. You can change the automatically generated Link Number value. |
Position | |
Start Point | Specifies the point from which the link starts. |
End Point | Specifies the point at which the link ends. |
Miscellaneous | |
Comment | Indicates notes about the link. Comments can be displayed in the Preview panel. |
To see an example of how this geometry element is used, open the following Sample PKT file:
Auxiliary Link Example.pkt

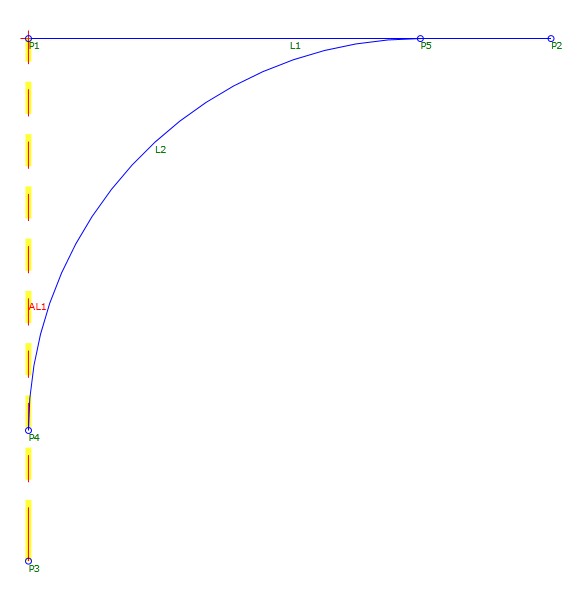

In the example, L1 is automatically drawn between points P1 and P2. L2 is a fillet arc, which must be drawn between two links. AL1 is not drawn in the final subassembly, but it is manually drawn between P1 and P3 so that L2 can use its geometry.
