To add a material style

Add a texture or color swatch as a material style. When it is applied, the material is tiled over the surface of the object to which it is applied.

1. Click .

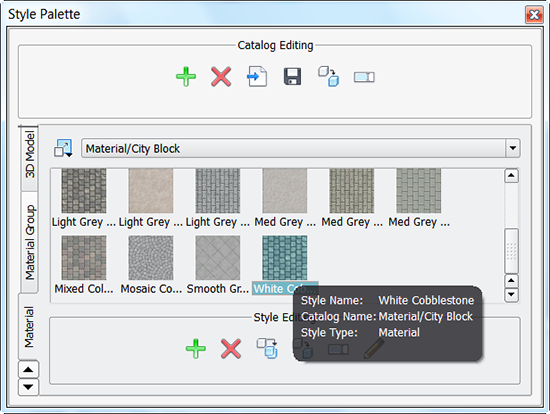

2. Click the Material tab on the left side of the Style Palette.
3. From the style catalog list, select the catalog for the new style.
4. In the Style Editing area (at the bottom of the palette), click (Add a New Style to the Current Catalog Above).
5. Indicate whether the material will be a solid color or use a texture map.

   For colors, enter the hexadecimal value representing the color, or click Browse and navigate to the file representing the color.

   The supported color format is <xRRGGBB(AA)> or <#RRGGBB(AA)> with R, G, B, and A being the hexadecimal representations of the red, green, blue, and alpha channels of the color. The definition of the alpha channel is optional. It defaults to FF, which is fully opaque.

6. Indicate the width and height if a texture map is used.
7. Set the Texture Coordinate Anchor settings (TexCoord Anchor), if desired.

   For more information regarding these settings, refer to Edit Styles.

8. When you are finished, click OK in the Style Editor.

   The style thumbnail appears in the catalog. Click in the name area to rename it.
