Define the Second Positional Representation

Next, you use the same process to define the other two representations.

  1. Double-click the Middle Position (-45 deg) representation to make this representation active.

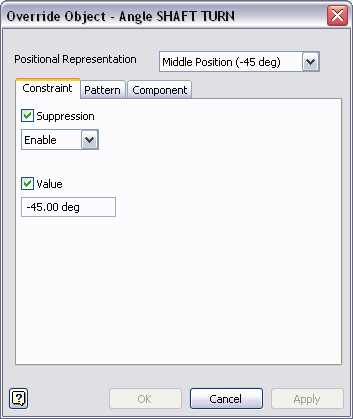

  2. Right-click the Angle SHAFT TURN (180.00 deg) constraint, and select Override.
  3. Select the Suppression option.
  4. Ensure that Enable appears in the menu.
  5. Select the Value option.
  6. Set the value to -45 deg.
  7. Click OK.
