Synopsis
This design defines an extrusion of co-planar curves or a planar surface. The extrusion is a solid part that inherits mass properties from SolidMixin.
Canonicals
| Name | Type | Description |
|---|---|---|
| profile | part | PlanarProfile part or solid face used as the extrusion profile. |
| height | number | Height of the extrusion in the extrudeDirection direction. |
| extrudeDirection | vector | Vector defining the direction of the extrusion. |
Parameters
| Name | Type | Description |
|---|---|---|
| curves | list | List of coplanar curves that make up the extrusion profile. The curves should form a closed loop. |
Group Rules
<curves_only (curves)> If a curve list is supplied, a profile is created.

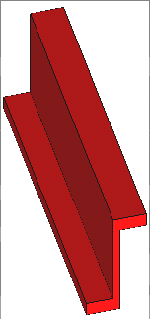

Example 1
| Name: | ExtrudedSolid_Ex01 | |
| Design: | ModelingOperations Block AcDrawingDocument | |
| Name | Type | Formula |
| height | number | 2 |
| length | number | 5 |
| width | number | 1 |
| pointList | list | {v000, v000 + (unitZ * height * 1/8), vA00 +(unitZ * height * 1/8), vA00 + (unitZ * height), v101, v101 - (unitZ * height * 1/8), vB00 + (unitZ * height * 7/8), vB00} |
| vA00 | point | origin + (unitX * width * 4/9) |
| vB00 | point | origin + (unitX * width * 5/9) |
| Child Name: | outline | |
| Child Design: | :Line | |
 Child List? |
||
| Name | Type | Supplied |
| thruPoint1 | point | nth(child.index, pointList) |
| thruPoint2 | point | nth(child.index, rest(pointList) + {first(pointList)}) |
| render? | boolean | False |
| Quantity | integer | length(pointList) |
| Child Name: | extrudedOutline | |
| Child Design: | :ExtrudedSolid | |
| Name | Type | Supplied |
| curves | list | outline |
| height | number | Me.length |
| extrudeDirection | vector | Me.unitY |
Example 2
| Name: | ExtrudedSolid_Ex02 | |
| Design: | ModelingOperations Block AcDrawingDocument | |
| Name | Type | Formula |
| height | number | 2 |
| length | number | 5 |
| width | number | 1 |
| pointList | list | {v000, v000 + (unitZ * height * 1/8), vA00 +(unitZ * height * 1/8), vA00 + (unitZ * height), v101, v101 - (unitZ * height * 1/8), vB00 + (unitZ * height * 7/8), vB00} |
| vA00 | point | origin + (unitX * width * 4/9) |
| vB00 | point | origin + (unitX * width * 5/9) |
| Child Name: | outline | |
| Child Design: | :Polygon | |
| Name | Type | Supplied |
| pointlist | list | Me.pointList |
| render? | boolean | False |
| Child Name: | extrudedOutline | |
| Child Design: | :ExtrudedSolid | |
| Name | Type | Supplied |
| profile | part | outline |
| height | number | Me.length |
| extrudeDirection | vector | Me.unitY |
