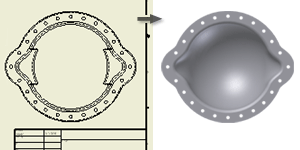

Updates are automatic between the 3D model and the associated 2D drawing. When you change the 3D model, the drawing updates automatically. |
 |
|
Updates are automatic between the 2D drawing and the associated 3D model. When you change the model dimensions in the drawing, the 3D model updates automatically. |
 |
|

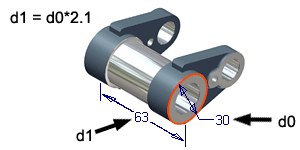

Parameters define the size and shape of features. |
 |
|

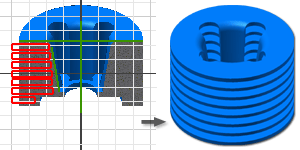

consumed and unconsumed sketches Consumed sketches are 2D sketches or profiles used to create a part or feature of a part. Consumed sketches are reusable. Unconsumed closed sketches are used to create a part or a feature of a part. |
 |
|
Project model edges, vertices, or work features onto the active sketch plane. Reference geometry is associated with the previously created geometry. |
 |
|

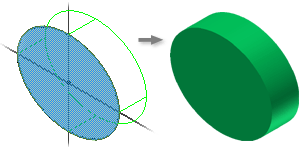

Add volume perpendicular to a 2D sketch. |
 |
|

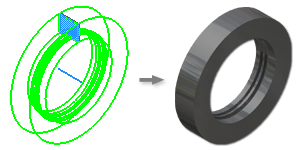

Create a concentric extrusion around an axis or straight sketch line. |
 |
|
Create an extrusion that modulates in shape from one sketch profile to the next. |
 |
|
Create a cavity in a part with a specified wall thickness. |
 |
|

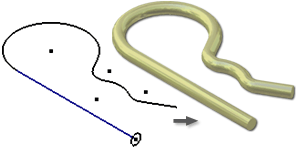

Create an extrusion of a sketched shape along a defined path. |
 |
|

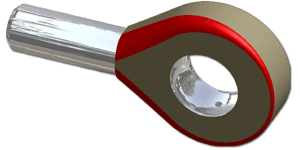

Create a smooth blend from one radius to another and a straight blend between radii. |
 |
|

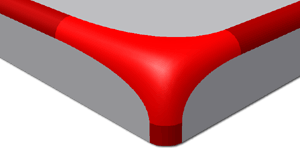

Create tangent continuous transitions between fillets on intersecting edges. You can specify separate setbacks for edges in intersections. |
 |
|
Create ribs (thin-walled closed support shapes) and webs (thin-walled open support shapes). |
 |
|
Stitch adjacent surface edges of the same size together to form a quilt. |
 |
|

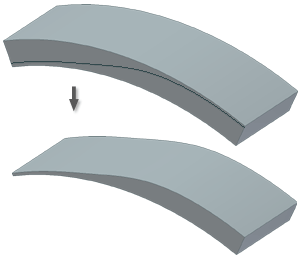

Split part faces to add draft or split a part and remove one side. Do face splits on solid and surface bodies and part splits on solid bodies. |
 |
|
Apply draft, or cant faces on molded or cast designs so they can be retrieved from molds. |
 |
|

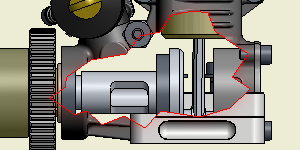

Remove a defined area of material to expose obscured features in a drawing view. |
 |
|

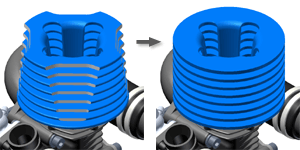

Suppress and unsuppress the display of one or more features without deleting them. Suppressed features highlight as you move the cursor across them. |
 |
