- On the ribbon, click
Environments tab
Begin panel
Inventor Studio
. A Render tab is added to the ribbon as the active tab, and the Studio commands are available.
- In the browser, right-click the node named Lighting (Table Top), and then remove the check mark next to Visibility. This change removes the lighting symbols from the graphics window.
- Activate a scene style for the best rendering. Several scene styles are provided and you can create new ones.
- On the Scene panel, click Scene Styles.
- In the Scene Styles dialog box, click the New Style command, and name the new style XZ Reflective GP(Tan).

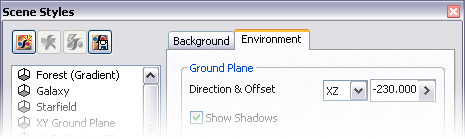

- On the Environment tab of the dialog box, set Direction & Offset as shown in this image.
- Configure the other settings to your preference, save your changes, and click Done.
