Set the Analysis Sequence

In this task, you use the set the analysis sequence to Cool(FEM) + Fill + Pack + Warp.

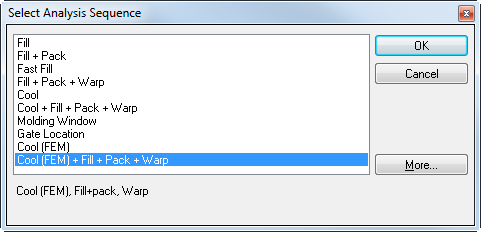

1. Click Home > Molding Process Setup > Analysis Sequence.

2. Click Cool(FEM) + Fill + Pack + Warp.

   Note: If you do not see an analysis sequence, click More to see all that are available for the molding process.

3. Click OK.
