To Use a Plane to Cross-Section a 3D Model for the First Time

To use a plane to cross-section a 3D model for the first time

1. Click Viewpoint tab Sectioning panel Enable Sectioning .

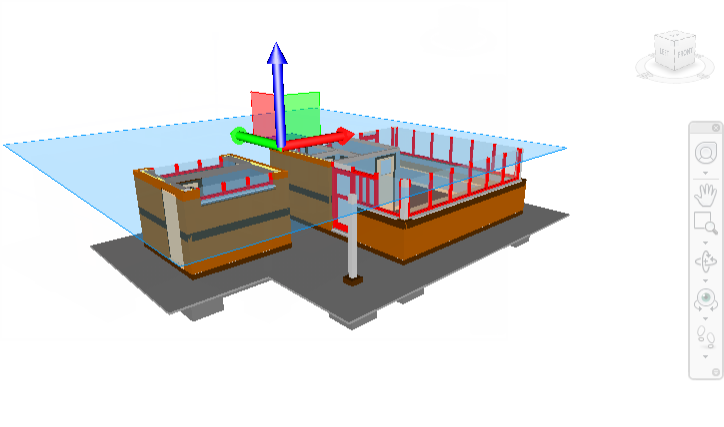

   Autodesk Navisworks opens the Sectioning Tools tab on the ribbon, and draws a section plane through the model in the Scene View. Default alignment for Plane 1 is Top. Default position is through the center of the visible area of the model. Move is the default gizmo.

2. Drag the gizmo to position the current plane as needed.
