Sketching Beams with the Chain Option

When the Chain option is selected, Revit LT supplies the endpoint of the last beam as the start point of the next beam.

To sketch beams using the Chain option

1. Click Structure tabStructure panel Beam.
2. On the Options Bar, select Chain.
3. Place the first beam in the chain. See Sketching Individual Beams.
4. Place each additional beams by clicking the endpoints of the beams.

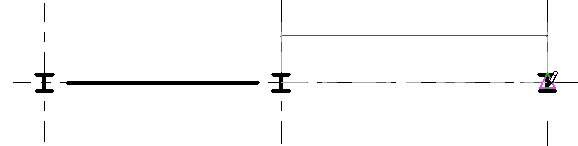

   Sketching beams using the chain option
