Part 3: Creating a Terrain and Building Pad

Category New Users Time Required 15 minutes Tutorial Files Used GSG_03_terrain_pad.rvt

In this exercise, you add a toposurface and a building pad to the building site. You add points at different elevations to create the terrain and create a building pad based on the foundation walls of the building.

Objectives

• Create a toposurface by defining points at different elevations.
• Create a building pad based on the footprint of the foundation walls.
• Use a section box to frame the 3D view including the terrain.
• Specify a grass material for the terrain for a realistic 3D view.

Watch the video

Add Terrain

1. Open exercise file GSG_03_terrain_pad.rvt.
2. In the Project Browser, under Floor Plans, double-click Site.
3. Click Site tabModel Site panel (Toposurface).

   Notice that the Place Point tool on the Tools panel is selected by default.

4. On the Options Bar, for Elevation, enter 10'.

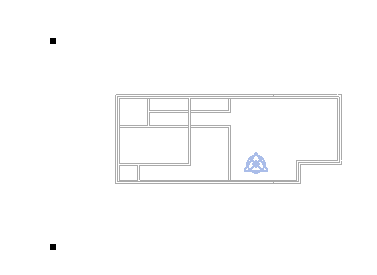

5. Click in the drawing area to add 2 points just to the left of the building, one above and one below the building.

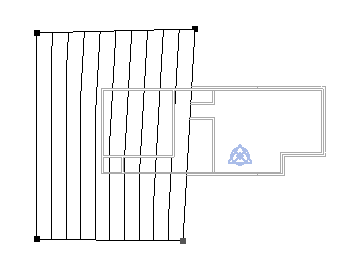

6. Change the Elevation value to 0', and add 2 more points toward the middle of the building - one above and one below the building.

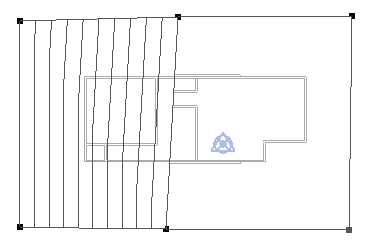

7. Change the Elevation value to -1', and add 2 more points just to the right of the building - one above and one below the building.

8. On the Surface panel, click (Finish Surface).

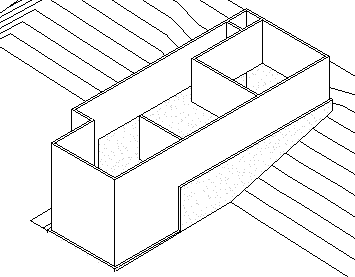

9. On the Quick Access Toolbar, click (Default 3D View).

Add Building Pad

1. Click Site tabModel Site panel (Building Pad).
2. Click Modify | Create Pad Boundary tabDraw panel (Pick Lines).

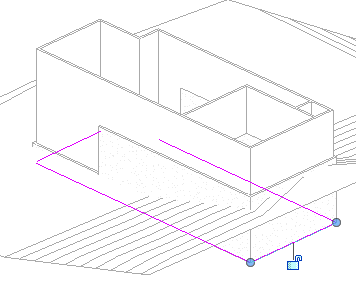

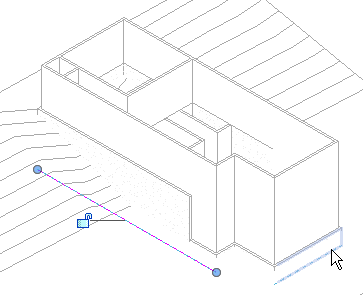

3. Select the foundation walls.
   Note: Use the ViewCube to reorient the view so you can pick all of the foundation walls.


4. On the Modify panel, click (Trim/Extend to Corner), and select the lines to close the building pad boundary.
5. On the Mode panel, Click (Finish Edit Mode).

6. Orient the 3D view so it is displayed from the top/right angle, and click outside of the building and terrain to select the 3D view itself.
7. On the Properties palette, under Extents, select Section Box.

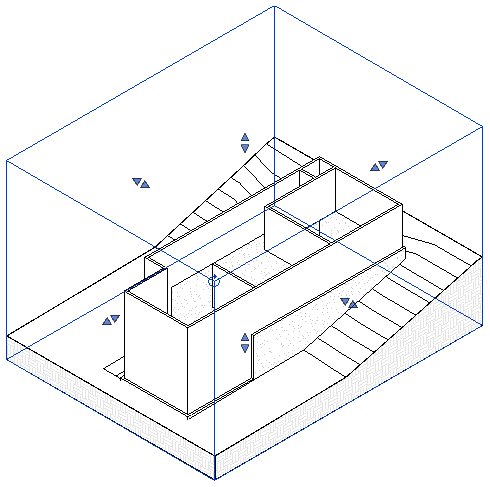

8. Select the section box in the drawing area, and drag the controls to size the box as shown.

9. With the section box still selected, right-click, and click Hide in ViewElements to hide the section box.
10. Select the terrain, and on the Properties palette, for Material, click the browse button.
11. In the Materials Browser:
    1. In the search field, type grass and press Enter.
    2. In the search results, double-click Grass to add it to the project. It displays in the top pane of the browser under In Document Materials.
    3. In the top pane, click Grass, and click OK to assign grass to the selected element.

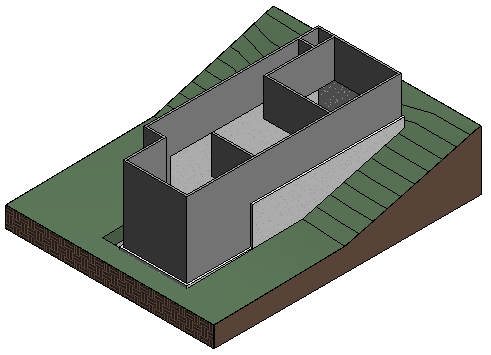

12. On the View Control Bar, click Visual Style: Hidden LineShaded to view the materials.
