Use the Steel Connections tab to define, view and edit objects related to the steel connection design (the tab is available on the Steel Connections layout).

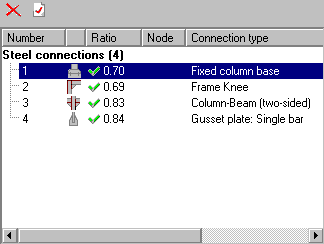

The Display field shows a list of active connections with the following information:
- connection number with a connection type (button)
- ratio value
- connection name.
The upper part of the dialog box holds the following buttons:
Deletes selected connections - pressing the
Edits selected connections.
You edit attributes in The Properties field.
