Look At

Look At a face, surface, or point

Use Look At to zoom and rotate the model in the graphics window. You can choose from three different Look At functions:

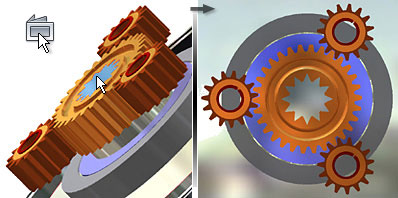

• Look At : Positions the selected planar element parallel to the screen or positions the selected edge or line horizontal to the screen.
• Look At Point : Centers, rotates, and zooms the display to position the elements around the selected point normal to the screen.
• Look At Surface: Creates a best-fit plane through the selected surface and positions the plane parallel to the screen. Also, zooms the display to enclose the surface.


On the Navigation Bar, click the Look At command. To select a different Look At command, click the down arrow and choose from the menu. Click the appropriate model geometry to reorient the display.
