If you are continuing from the Truss Tower Natural Frequency - Modal Analysis tutorial, skip this step using the "Next" hyperlink at the bottom of the page.
The modal analysis results of the structure are required to perform a response spectrum analysis.
- Click
Open on the Quick Access Toolbar (QAT). The Open dialog box displays. - Navigate to your tutorial models folder.
- Select the Autodesk Simulation Archive (*.ach) option in the Autodesk Simulation Files section of the Files of type drop-down list.
- Select the file, Truss Tower Modal Results.ach, and click Open.
- Select the directory where you want the file to be extracted

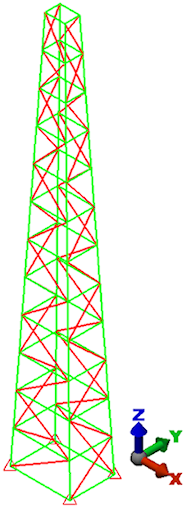

- Click OK. This archive includes the results of the prerequisite modal analysis. The model opens in the FEA Editor environment, as shown below.
