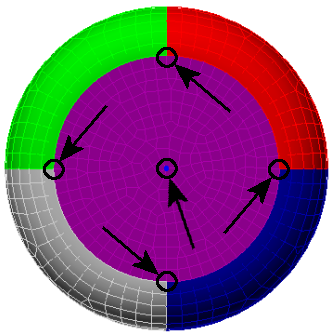

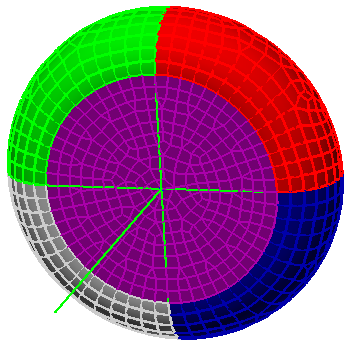

Next, add the beam elements to the top surface of the knob. We will create four radial spokes and a 1.5" long axial beam element. These will be used later to apply a torque moment to the knob.
Click View
Appearance
Color by

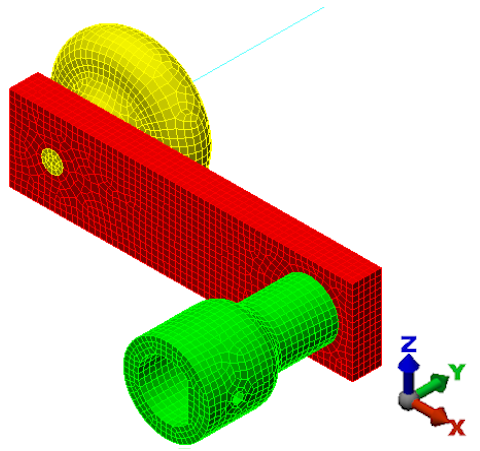

Part to restore the view to the default Color by option. The model should appear as shown below.
This tutorial is now complete. The meshed model can be used to complete the Crank Static Stress Analysis tutorial.
