Zoom views of areas

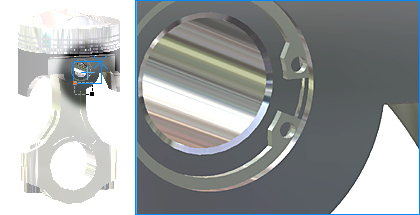

    Use Zoom Window to define an area of a part, assembly, or drawing to fill the graphics window.

    1. On Navigation barZoom Window.
    2. Use the cross hairs to locate the area.
    3. Click and drag to frame the area of interest.

Parent topic: Navigation Bar
