Analyze the Model

1. Click  Analysis Analysis Run Simulation. The analysis proceeds and the model displays in the Results environment.

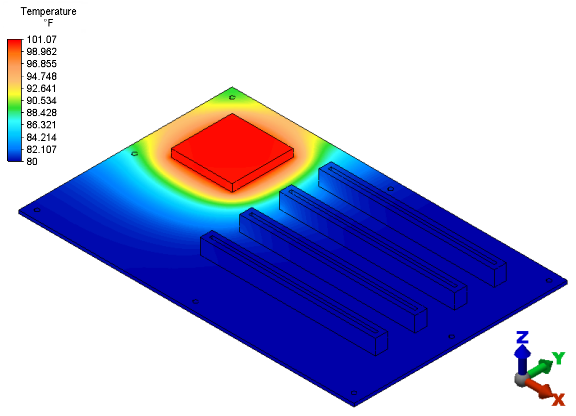

2. Click   Results Options View Loads and Constraints to hide the thermal load symbols.  The model should appear as shown below.
