Display Options

Display options are found in the Settings panel of the Results Contours ribbon tab or in the View, View Settings, or Other panels of the Results Options ribbon tab.

Commands found under Results Contours Settings

Save to Default Settings

If this command is selected, the current display settings will be saved as the defaults for all future models. This includes, result contour settings, legend box settings, annotations, and curve settings.

Reset to Default Settings

If this command is selected, the default settings will be loaded and applied to the model. The default settings can be saved using the Save to Default Settings command.

No Contour on Kinematic Elements

If this command is active, any parts of 2D or 3D kinematic elements will be displayed by part color instead of the results contour. If this option is not active, these parts will be displayed with the results contour if it is applicable (stress is not an applicable result for kinematic elements). If the results contour is not applicable, the part will be displayed as a wireframe. This command will only be available for a nonlinear analysis.

Results found under Results Options View

Element Visibility Hide Selected Elements

Any elements that are currently selected when this command is activated will disappear from view. They can be viewed again by executing the Show All command.

Element Visibility Hide Unselected Elements

Any elements that are not currently selected when this command is activated will disappear from view. They can be viewed again by executing the Show All command.

Element Visibility Show All

All elements will return to view (available for selection) after this command is selected. None of the elements are hidden.

In the case of solid elements (bricks, tetrahedrons, and so on), elements which are not hidden may still not be visible or contributing to the results shown in the display. Refer to the paragraph Show Complete Mesh below.

Mitre Visualized Beams

If this command is selected, a mitre operation will be performed where beam elements meet at an angle. This will show a more realistic representation of the 3D geometry. If the mitre operation results in inaccurate geometry, verify that the i and j coordinates are consistent along the length of the beam.

Show Internal Mesh

This command only effects models with solid elements (bricks, tetrahedrons, and so on).

By default, only the surface mesh of a solid part is shown. If this command is activated, the entire solid mesh will be displayed for elements that are not hidden. (Results Options View Element Visibility Show All is used to display hidden elements.)

When displaying a result, this option also affects the values shown in the legend and the maximum and minimum probes. When displaying only the surface mesh (Show Complete Mesh is not activated), the range shown in the legend is based only on the nodes on the elements attached to the surface. If the complete mesh is shown (Show Complete Mesh activated), then the range in the legend and probes are based on the complete mesh: the inside mesh and surface.

Tip: Also see the page Results Environment for a discussion of how the results are displayed based on various settings.

Whether the complete mesh is activated of deactivated, elements and nodes on the interior can still be selected, either with the mouse or by specifying the appropriate number under Results Inquire Inquire Element Information Specify. See Figure 1 below.



       Show All activated (default)

Some elements hidden

Show Complete Mesh deactivated (default)

All nodes and elements are available for selection, but interior mesh is not shown.

Interior mesh is not shown, and only nodes on the available elements can be selected.

Show Complete Mesh activated

Interior mesh is shown.

Interior mesh is shown.

 Figure 1: Comparison Between Show Complete Mesh and Show All Elements

The unshaded mesh is shown to reveal the details of the inside. In each figure, a selection rectangle was used to select the nodes through the thickness, as indicated by the magenta selection dots.

No Shading When Moving Model

System resources are used when the model is dynamically rotated, zoomed, or panned - using the mouse or the commands (View Navigate Orbit, View Navigate Zoom Zoom, and View Navigate Pan, respectively). The speed at which the model responds to the movement of the mouse can be improved by activating the No Shading When Moving Model option. When activated, the model is shown without any shading while the viewpoint is dynamically moving. When not activated, the shaded model is displayed while the viewpoint is moving.

Shrink Elements

This command will allow you to shrink all the elements about their centroid. A slider bar appear so you can shrink them to the appropriate factor.

Show Numbers Node Numbers

This command will cause the node numbers to be displayed on the model. These numbers are generated during the decoding process.

Show Numbers Element Numbers

This command will cause the element numbers to be displayed on the model. These numbers are generated during the decoding process.

Element Orientation

This command will allow you to show the orientation information for the relevant element types.

Use the Element Orientations commands to display the element 1, 2, or 3 axis directions with a red, green, or blue arrow, respectively. Plate, 2D, membrane, and beam elements have local orientations. The 1-2-3 direction is important to know for a variety of reasons, such as when viewing the stress tensor results in local element coordinates (see Results Contours Settings Use Element-Local Results), or for beam stresses about the local axes, or for a temperature difference through the thickness of a plate element. Each axis arrow points in the positive direction. For composite elements, the Element Orientations show the element's a, b, or c axis directions.

Note: The visualization of beam orientation may not follow the beams properly when the beams experience axial rotations in a Mechanical Event Simulation (MES) and nonlinear analyses unless the Large rigid body rotation option is used. (This option is activated on the beam element's Element Definition dialog.) This is just a visualization issue; the calculated results are not affected.

If you select the Material Axis Orientation command, an arrow will appear pointing in the direction of the principal material axis for each element. The principal material axis is defined as follows:

Material Model or Element Type

 Principal Material Axis

Isotropic Same as local element axis 1
Orthotropic (except for composite elements) Points in direction of modulus of elasticity E1
Composite elements Points in direction of Laminate (material) axis x. The angle of the fibers for each lamina (q) are measured from the Laminate axis x.
Tip: The size of the orientation symbols can be adjusted from Options Results Global FEA Objects Preferences.

Commands found under Results Options View Settings

Lighting

If you do not want the model to be shaded using a light source, you can deactivate this option. The model will now be colored according to the part number or the results contour with no effects of lighting.

Background Image

This command will allow you to select an image file to display in the background of the display area. You will also be able to have this image appear in any images that you save.

Transparency Level

When this command is executed, a Transparency dialog will appear. The sliders will allow you to control the transparency level of the following items:

  • Model: The transparency of all the parts and surfaces that are currently transparent can be adjusted. (Activate the transparency of parts and surfaces by selecting the relevant entry in the tree view, right-click, and choose Draw Transparently.)
  • Slice Planes: The transparency of all slice planes can be adjusted. (Slice planes can be shown or hidden by selecting the relevant slice plane in the tree view, right-click, and choosing Show or Hide.)
  • Impact Planes: The transparency of all impact planes can be adjusted. (Impact planes can be shown or hidden by using Results Options View Settings Impact Plane Visibility.)

Minimum Break Angle for Features

Use this command to set the angle that will be used to define the feature lines of a model. If the normals of any two adjacent faces intersect at an angle greater than this value, a feature line will be defined.

Slice Planes

Use the available slice plane commands to create, activate, deactivate, or manipulate the visibility, position, and orientation of slice planes. In order slice plane editing commands to be active, you must have an active slice plane in the current presentation window.

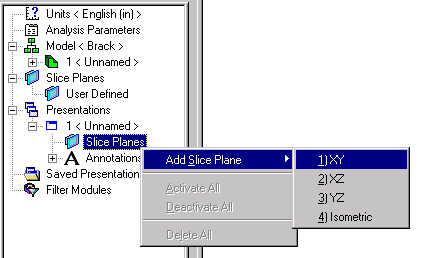

You can use the ribbon commands or a context menu to create a slice plane. For the latter method, right-click the Slice Planes heading in the Presentation section of the browser, as shown in the image below. Select the Add Slice Plane command and then select one of the options in the next pull-out menu.

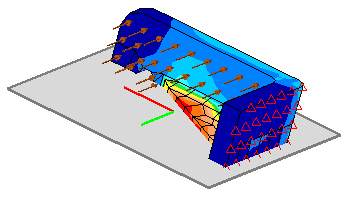

Once a slice plane is selected, it will appear on the model and the commands under Slice Planes in the ribbon will become active. A sample slice plane is shown below. The descriptions of the commands will refer to this image.

  • Changing the Orientation of a Slice Plane: The Rotate About I command will allow you to rotate the plane about the local i axis. This is the red axis on the slice plane. The Rotate About J command will allow you to rotate the plane about the local j axis. This is the green axis on the slice plane The Rotate About Origin command will allow you to rotate the plane about the origin of the slice plane. The origin is at the intersection of the i and j axes. When one of these commands is selected, you can rotate the slice plane by clicking the left mouse button and dragging the mouse across the screen. The slice plane will rotate to follow the mouse.
  • Changing the Location of the Slice Plane: The Translate Along K command will allow you to move the slice plane along the axis normal to it. This can be done by clicking the left mouse button and dragging the mouse across the screen. The slice plane will translate to follow the mouse.
  • Changing the Side of the Slice Plane that is Displayed: By default, the slice plane will show the portion of the model on the positive side of the plane. The positive side of the plane is determined by the cross product of the i and j axes. By selecting the Flip command, the portion of the model on the positive side of the plane will be hidden and the portion on the negative side will appear.
  • Saving Slice Planes: The Save command will allow you to save the current orientation and location of the plane as a user-defined plane. After this button is pressed, the plane will be located in the User-Defined section under the Slice Planes heading in the tree view. These slice planes will be available for any future models.

Impact Plane Visibility

This command will access the Impact Planes Settings screen. Each impact plane in the model will be listed in this screen with a check box. Deactivating a check box will cause that impact plane to disappear from the display area.

Import Presentations (Results Options Other Tools Import Presentations)

If you have saved a presentation in a previous model, you can import those saved settings using this command. This will access a File Open dialog where you can select the necessary *.FEM file for the previous model. All saved presentations from all design scenarios in the selected file will be imported.

The imported presentation can be applied to the current model by double-clicking on the entry, or by right-clicking and choosing Activate.
