Define a Load Curve for the Internal Heat Generation

1. Expand the Load and Constraint Groups heading in the browser (tree view).
2. Right-click 2 < Heat Generations > and choose Edit.
   1. Ensure that 1 is entered in the Load Curve field and click the Curve button. The Multiplier Table Editor appears.
      • Type  1 in the first row of the Multiplier column.
      • Click the Add Row button.
      • Type 60 in the second row of the Time column. Keep the default Multiplier value of zero (0).
      • Click the Add Row button.
      • Type 300 in the third row of the Time column. Again, keep default Multiplier value of zero (0).

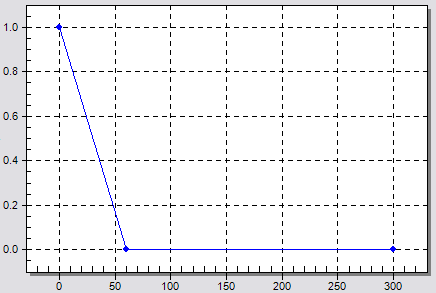

      • Press Enter. The load curve appears as shown below.



   2. Click OK to accept the load curve data.
3. Click OK to accept the heat generation settings.
