Open the Model

1. Click Open on the Quick Access Toolbar (QAT). The Open dialog box displays.
   • Navigate to your tutorial models folder.
   • Select the Autodesk Simulation Archive (*.ach) option in the Autodesk Simulation Files section of the Files of type drop-down list.
2. Select the Radial Comb.ach file and click Open.
   • Select the directory where you want the file to be extracted.

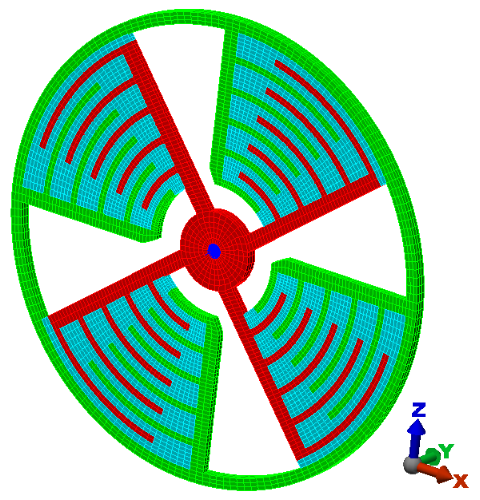

   • Click OK. The model opens in the FEA Editor environment, as shown below.



The analysis type has already been set to Electrostatic Field Strength and Voltage.
