Review the Results

We will now look at an isometric view of the von Mises stress results.

1. Click the Home icon above the ViewCube for an isometric view of the model.

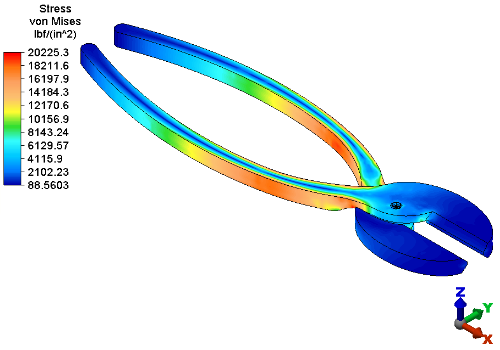

2. Click  Results Contours Stress von Mises. The model displays as shown in the following image.

This tutorial is now complete.
