Next, we will apply fixed boundary conditions to the surfaces of both holes in the vertical part.
- Click
View
Visibility Construction Objects and
View Visibility Construction Vertices to toggle off the display of these items. - With the
Selection Shape Point or Rectangle and
Selection Select Surfaces commands active... - Click inside the upper hole, near its edge. The circular edge should now be selected. The edges of a 2-D mesh represent surfaces and are selected as surfaces.
- Holding Ctrl, click inside the lower hole, near its edge.
- Click
Setup Constraints General Constraint. - Click the Fixed button.
- Click OK.

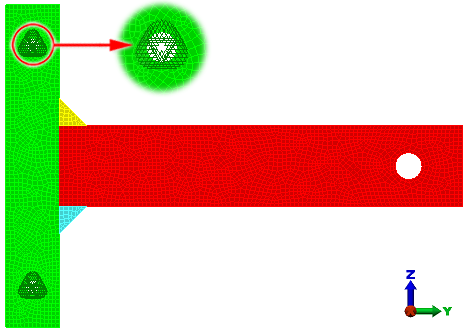

- Press ESC to clear the selection. The model displays as shown in the following image.
