Verify and Generate the Model

Now we will look at the preview of the model in PV/Designer and then generate the model and view it in the FEA Editor environment.

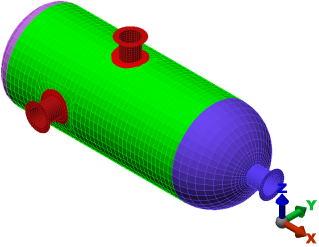

1. Click  View Orientation Enclose to see a preview of the pressure vessel geometry.  The model displays as shown in the following image.

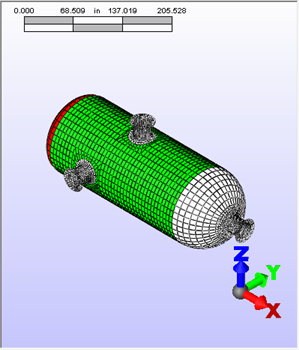

2. Click File Done to exit PV/Designer and open the model in the FEA Editor environment. The model displays as shown in the following image.


This tutorial is now complete.
