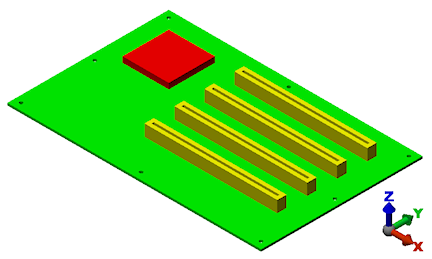

In this tutorial, we will step through the meshing of the circuit board shown in the image below. The model is created in the Create Circuit Board CAD Model in Inventor Fusion tutorial. If you do not wish to construct the CAD model, the file, Circuit Board.dwg, is provided within the tutorial models folder.
The meshed model will be used in the Circuit Board Steady-State Heat Transfer Analysis tutorial.
Features Illustrated:
- Importing CAD models from Inventor Fusion
- Surface-Knitting
- Solid meshing
