Apply the Constraints
We will now apply the constraint to the bottom surface of the shaft.
With the
Selection
Shape
Point or Rectangle
and
Selection
Select
Surfaces

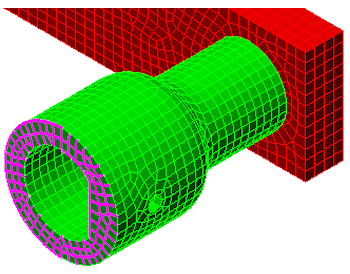

commands active, click the surface at the end of the shaft, as shown below.
Click
Setup
Constraints
General Constraint
.
Click the
Fixed button.
Click
OK
.
Next
