Open the Model

If you are continuing from the Truss Tower Natural Frequency - Modal Analysis tutorial, skip this step using the "Next" hyperlink at the bottom of the page.

  1. Click Open on the Quick Access Toolbar (QAT).  The Open dialog box displays.
    • Navigate to your tutorial models folder.
    • Select the Autodesk Simulation Archive (*.ach) option in the Autodesk Simulation Files section of the Files of type drop-down list.
  2. Select the file, Tower Modal Results.ach, and click Open.
    • Select the directory where you want the file to be extracted.

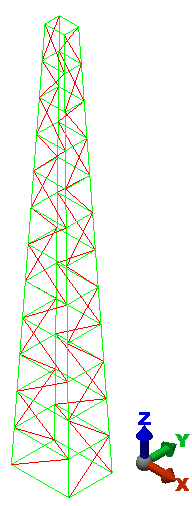

    • Click OK. The model opens in the FEA Editor environment, as shown below.
