Problem Description

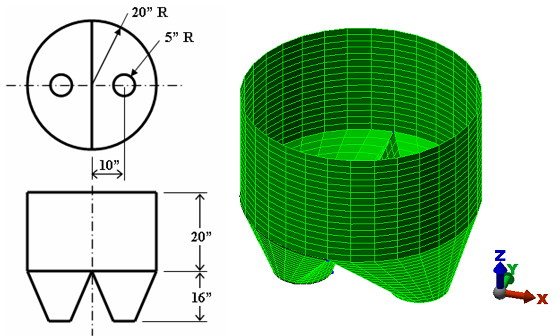

• Construct the 3-D hopper as shown in the following image.
• Draw half of the model using structured meshes.
• Use the mirror command to complete the model by creating the other half.
