The Gas module contains a simple data structure for facility management. You can use these feature classes to maintain equipment, such as chairs and tables. Facility features are not part of the network topology. They are used for orientation or illustration purposes. The predefined feature classes come with a number of attributes. The means by which attributes are stored in the facility topic are dependent upon the project and purpose.
| Facility | Description |
|---|---|
|
Topic |
Facility |
|
Table name |
GA_FACILITY_* |
|
Geometry |
The geometry feature classes store the geometry for the graphical representation. They do not store attributes of the facility features, except attributes to control the representation, such as linetype or symbol. |
|
Shortcut Menu |
Workflows: Facility Creation. For more information, see Facility Creation. |

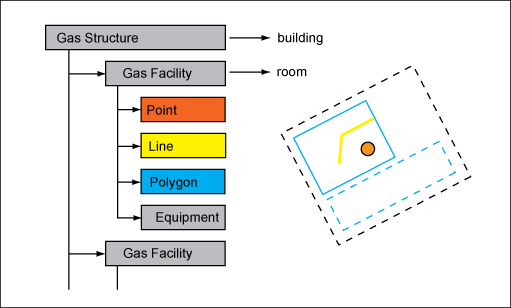

A Gas structure can be a building with rooms (facilities) containing equipment such as desks and chairs. The facility has geometry. Structure and equipment are attribute feature classes.
