To Manage Electrical Topology Settings

The Electric topology maintains the connectivity between conductors and devices. Use Infrastructure Administrator to configure the topology (which feature classes can be connected with which other feature classes). Use the Connectivity manager to manage the connections in AutoCAD Map 3D or Infrastructure Application Extension . For more information about logical topologies, see Logical Topology Introduction.

Note:

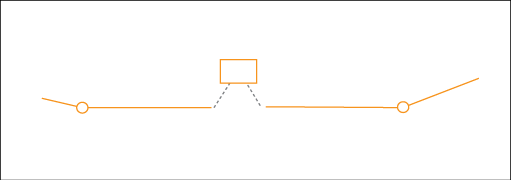

Conductors can only be connected to devices, not other conductors. A conductor can be connected to one or more devices, usually one on each end. You cannot connect two devices, for example, a fuse or switch directly to a transformer, you must use an intermediate conductor.

To view or modify Electric topology settings

1. In the Infrastructure Administrator, do one of the following:
   • Click Enterprise and connect to the enterprise industry model . Open the relevant Electric project.
   • Click File and open an industry model drawing or template that uses the Electric industry model.
2. Click the Electric industry model.
3. In the Administrator Explorer, click Data Model.
4. In the Data Model Explorer, expand the Topologies node.

   The two topologies, electrical and structural are available.

5. Right-click the electric topology. Click Properties.
6. In the Logical Topology dialog box, click Feature Classes In The Topology to view the feature classes that are part of the topology.
7. Click Connectivity Between Feature Classes to view the connectivity.
