To Create a Network Pipe

Use the Network Pipe Creation workflow to create network pipes with or without casing or anode protection.

Use this workflow to create network pipes with or without fitting points at start and end points.

1. In the Industry Model Explorer, click the Workflow explorer icon.
2. Right-click the Network Point Creation workflow.
3. Click Execute.
4. Specify a reference record, if any.
5. Under Choose Protections, specify whether to create casing, anode, or both when creating the pipes.

   You are prompted to create the protection features. Casings are polygons, and anodes are points.

6. Under Create Terrain Points, specify whether to create terrain points.
7. Click OK.
8. Follow the prompts.
9. Press ESC to finish the workflow.

   When you are finished creating geometry, the feature class form is displayed so you can add attribute data.

Feature Rules

Feature rules ensure consistency on the Pipe attribute feature class, Pipe and on its related Line geometry feature class.

• If a vertex of the new pipe lies exactly on an existing network point feature, the pipe is soft split, see Split Lines.

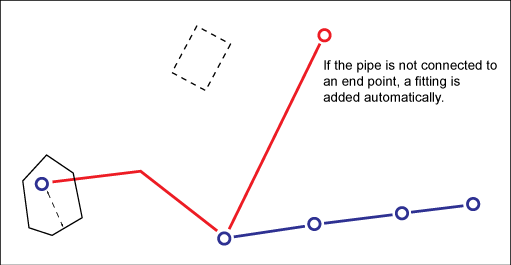

• If you create a pipe with a start or end that is not connected to a network point, by default a fitting is created, see Feature Rule: Create Start And End Nodes

For more information about utility feature rules see Utility Feature Rules.
