Export of formwork drawings to DWG

Using this option, you can save a formwork drawing of a selected position (element) to a DWG format file:

• Run positioning of structure elements (see: Automatic positioning)
• Select a position on the Positions tab of the Object Inspector dialog, right-click, and click Export formwork drawings to DWG.

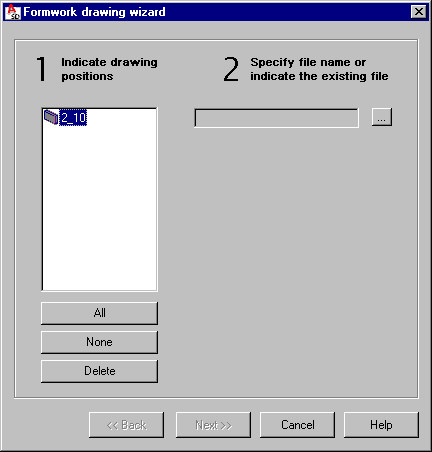

In the Formwork drawing wizard dialog:

1. Indicate a drawing position
2. Indicate the file where the formwork drawing will be saved
3. Click Next.

After the formwork drawing is saved, you can open it and edit it in AutoCAD or Autodesk AutoCAD Structural Detailing - Reinforcement.

You can save the following views to a DWG format file:

• Foundation plan
• Story plans
• Vertical sections through a building
• Elevation views
• 3D views.

To save a view to DWG:

1. Select a view / plan, right-click, and click Save to file
2. Specify the file name.
