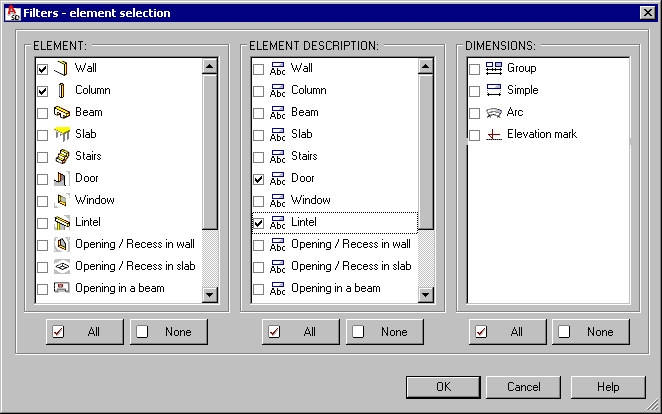

Filters - element selection

Using this option, you can define selection criteria for element descriptions and dimensions.

Open the Filters - element selection dialog from:

• Menu: Formwork Drawings > Select labels, dimensions and symbols
• Ribbon: ASD - Drawings > Edit drawings > Select labels, dimensions and symbols
• Toolbar: Descriptions, dimensions and symbols
• Command line: RBCX_LABEL_SELECT.

Select any combination of elements, element descriptions, and dimensions (the symbol displays) to specify selection criteria.

To select all options in a field, click All. To clear the selection of all options in a field, click None.
