After you define the structure model, you can assign a description to individual structure objects. Descriptions of structure elements can be inserted in plans of stories or foundations and in sections.

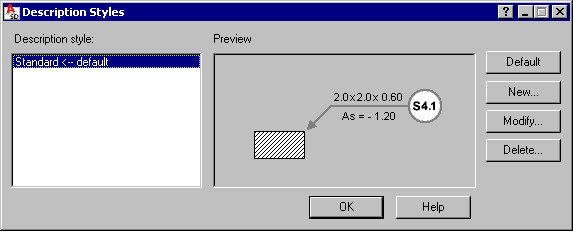

To begin defining the description style, open the Description Styles dialog from:
- Menu: Formwork Drawings > Styles > Element description styles
- Ribbon: ASD - Drawings > Settings > Styles > Element description styles
- Command line: RBCX_STYLE_LABEL.
Under Description style, there is a list of styles defined for a selected description.
The Preview field displays a graphic representation of the selected description style.
Use the buttons on the right side of the dialog to work with element description styles:
- Default - click this to select a default (standard) style.
- New - click this to open the Description style dialog, where you can define a new description style.
- Modify - click this to open the Description style dialog ,where you can modify the selected description style.
- Delete - click this to delete the highlighted description style.
