After a structure model has been edited, you can automatically create a 3-dimensional view of the model by clicking the following:
- Menu: Formwork Drawings > 3D view
- Ribbon: ASD - Drawings > Create Drawings > 3D view
- Toolbar: Drawings > 3D view
- Command Line: RBCX_DEF_VIEW3D.

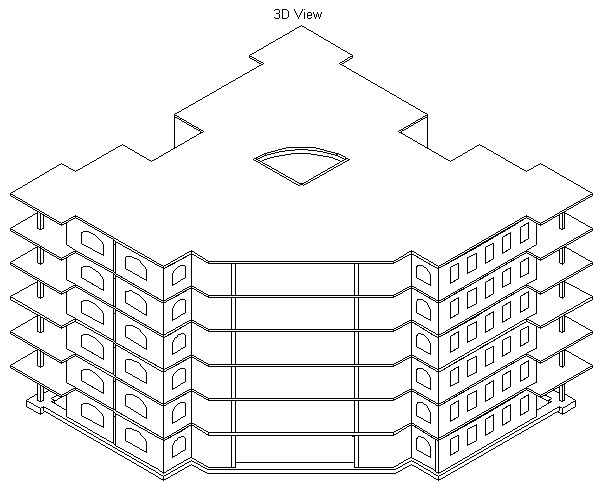

The 3D view of the structure model (made from the current structure view on the Model tab of the Object Inspector dialog) displays in the drawing area.
The generated 3D view also displays in the tree on the Positions tab.
