After a structure model has been edited, you can automatically create a projection of structure foundations:
- On the Model tab of the Object Inspector dialog, select a story in the directory tree.
- Right-click and click Create foundation plan, or select the following option from:
- Menu: Formwork Drawings > Plan of foundations
- Ribbon: ASD Drawings > Create drawings > Plan of foundations
- Toolbar: Drawings > Plan of foundations
- Command line: RBCX_DEF_FOUNDATION_VIEW.
A new projection (plan) of foundations is generated and displays in the tree on the Positions tab of the Object Inspector dialog.

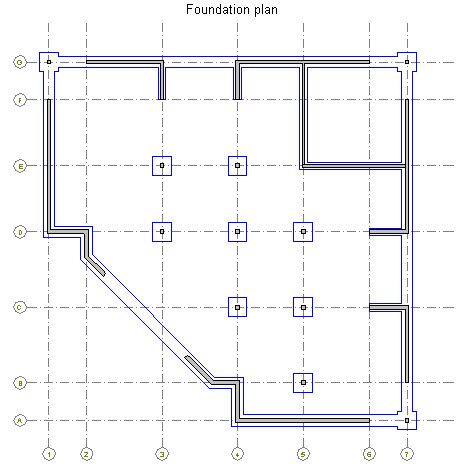

After you name the foundation plan, right-click it, and click Activate. A drawing of the foundation plan is created in the drawing area.
