Import Models into Advanced Material Exchange

Now that we have completed our Moldflow simulation and setup our structural model with Abaqus, we are ready to use Advanced Material Exchange to map fiber orientations to our structural model.

  1. With Advanced Material Exchange open, import the structural input file (Start & Learn > Launch > Import Structural Model).
  2. Locate the radiatortank.inp file and select units of Millimeters.
  3. Select the part from the assembly and click OK.

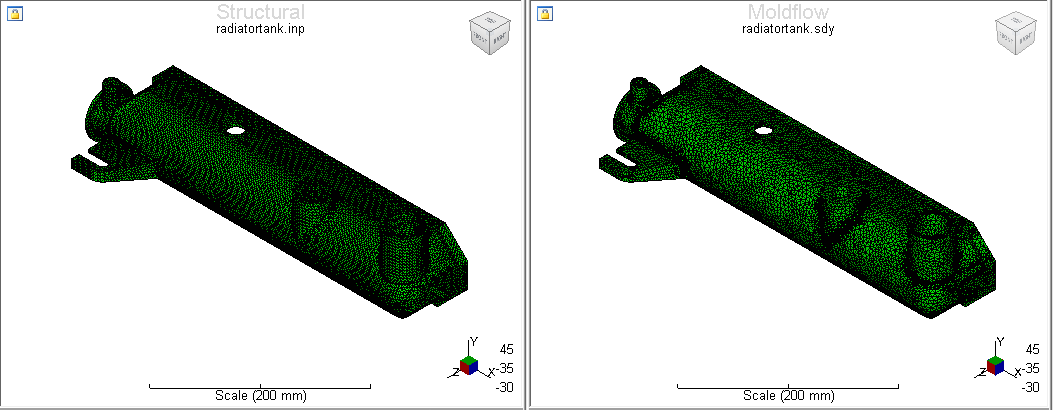

  4. Now import the Moldflow model (Home > Launch > Import Moldflow Model).
  5. Locate the radiatortank.sdy file and click OK.

Parent topic: Tutorial 2 - Analyze an Injection-Molded Radiator Tank
