Fill Preview

Use the Fill Preview tool to see the filling pattern for the injection location.

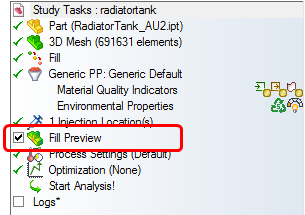

  1. Click Fill Preview in the Study Tasks List on the left side of the Synergy Window.

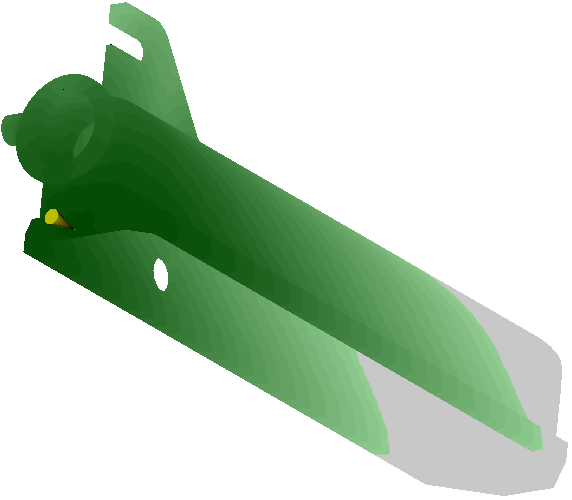

  2. When the Fill Preview is displayed on the part, click Home > Results > Results to display the results tab.
  3. Click Play to animate the results.

  4. When finished with the Fill Preview, click Results > Exit > Finish Results and deselect the Fill Preview checkbox.
Parent topic: Tutorial 2 - Analyze an Injection-Molded Radiator Tank
