Open the Part Geometry with Abaqus

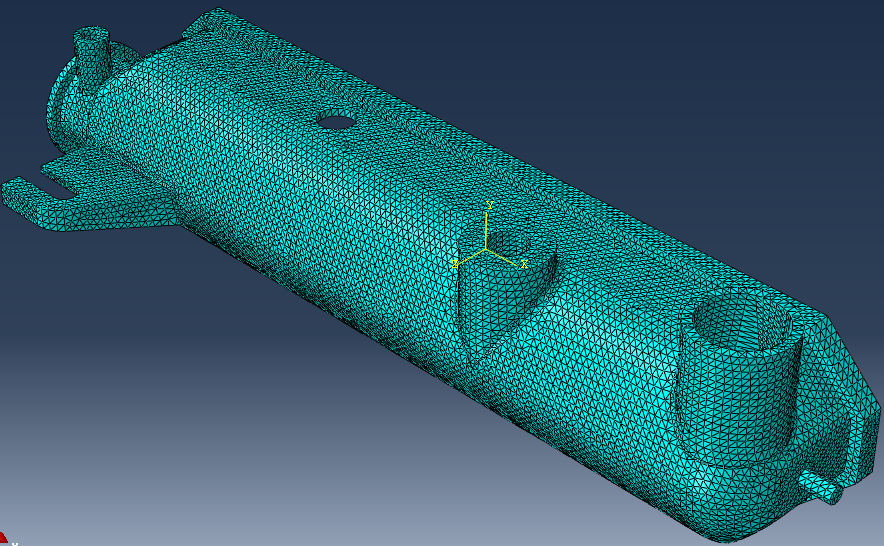

Import the model of the radiator tank into Abaqus.

  1. Open Abaqus/CAE.
  2. Click File > Open and locate the Radiatortank.cae file. Click OK.
