Input File Keywords

View the keywords available for creating input files.

Keywords are presented as parents first and their child keywords following (if they have any). Any keywords on the same level are not presented in any particular order. A parameter enclosed within square brackets indicates an optional parameter.

*MATERIAL

At least one *MATERIAL keyword must be present. This keyword defines a new material to be solved for.

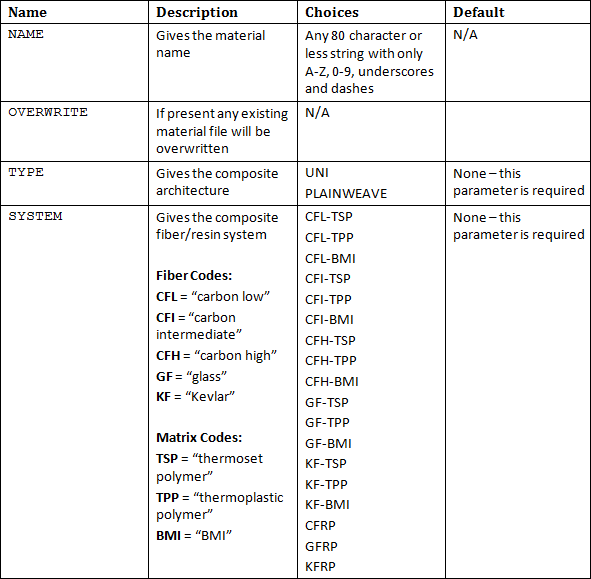

*MATERIAL

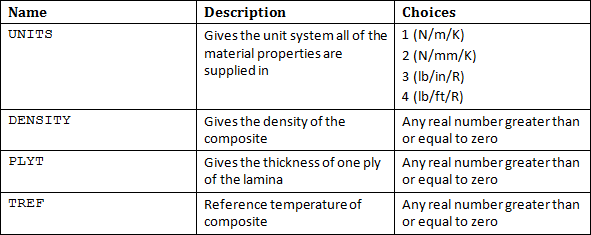

UNITS, DENSITY, PLYT, TREF

Parameters

Note: The standard CFRP, GFRP, and KFRP composite systems are still supported parameters with the *MATERIAL keyword. To specify a specific fiber or matrix system, use the appropriate combination of fiber and matrix codes listed above. The specific fiber and matrix codes (i.e. CFL-TSP) are only supported for versions 2015.1 and later.

Data

*FVF

The *FVF keyword is a child of *MATERIAL and must be present. This keyword supplies fiber volume fraction information. For unidirectional materials, FVF represents the total fiber volume fraction for the composite. For woven materials, FVF specifies the tow fiber volume fraction.

*FVF
FVF

Parameters

NONE

Data

*BVF

The *BVF keyword is a child of *MATERIAL and must be present for plain weave materials (Note: satin fabric materials are not supported in batch mode). This keyword supplies the bundle volume fraction information.

*BVF

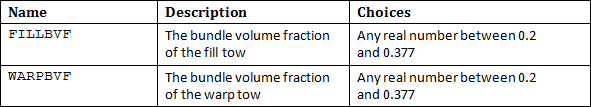

FILLBVF, WARPBVF

Parameters

NONE

Data

*DEGRADATION

The *DEGRADATION keyword is a child of *MATERIAL and must be present for plain weave materials. This keyword supplies the ratios of failed stiffness to virgin stiffness of the matrix and fiber constituents.

*DEGRADATION

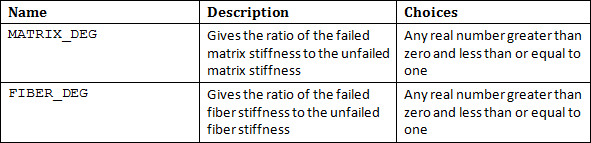

MATRIX_DEG, FIBER_DEG

Parameters

NONE

Data

*ENVIRONMENT

The *ENVIRONMENT keyword is a child of *MATERIAL. At least one *ENVIRONMENT keyword must be specified for each *MATERIAL. This keyword begins the definition of an environment containing a set of material properties for the current material.

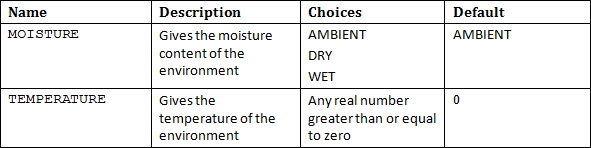

*ENVIRONMENT, MOISTURE=AMBIENT/DRY/WET, TEMPERATURE=TEMP

Parameters

Data

NONE

*STRENGTHS

The *STRENGTHS keyword is a child of *ENVIRONMENT. For unidirectional composites the *STRENGTHS keyword data is:

*STRENGTHS

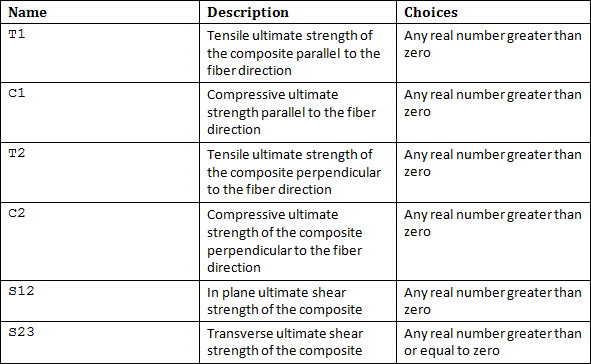

T1, C1, T2, C2, S12, S23

Parameters

NONE

Data

For plain weave composites the *STRENGTHS keyword data is:

*STRENGTHS

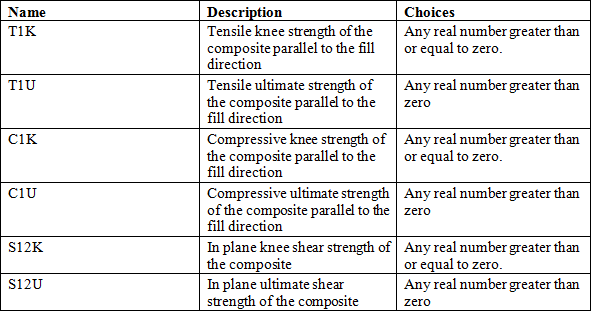

T1K, T1U, C1K, C1U, S12K, S12U

Parameters

NONE

Data

*LAMINA

The *LAMINA keyword is a child of *ENVIRONMENT and is required. This keyword gives the target elastic constants of the lamina. For unidirectional composites the material is assumed to be transversely isotropic with respect to the 2-3 plane. The data for *LAMINA for a unidirectional composite is:

*LAMINA

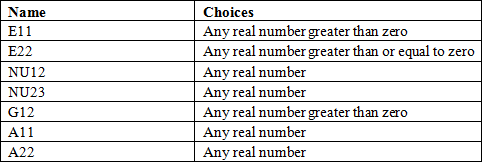

E11, E22, NU12, NU23, G12, A11, A33

For plain weave composites the material is assumed to be orthotropic. If all material properties are known they can be supplied. Otherwise, the following properties can be supplied as zero and will be calculated by CMM: E33, NU13, NU23, G13, G23, and A33. The data for *LAMINA for a plain weave composite is:

*LAMINA

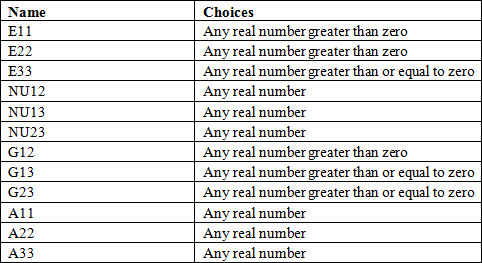

E11, E22, E33, NU12, NU13, NU23, G12, G13, G23, A11, A22, A33

Parameters

NONE

Data

*FIBER

The *FIBER keyword is a child of *ENVIRONMENT and is required. This keyword gives the starting elastic constants of the fiber constituent. The fiber is assumed to be transversely isotropic with respect to the 2-3 plane.

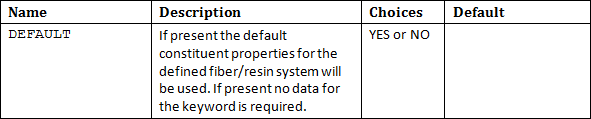

*FIBER, [DEFAULT]
E11, E22, NU12, NU23, G12, A11, A33

Parameters

Data

*MATRIX

The *MATRIX keyword is a child of *ENVIRONMENT and is required. This keyword gives the starting elastic constants of the matrix constituent.

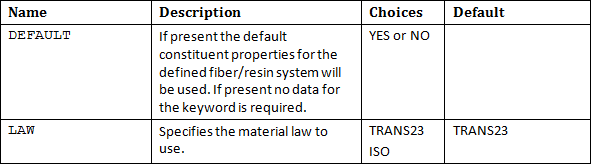

*MATRIX, [DEFAULT], [LAW=TRANS23/ISO]
E11, E22, NU12, NU23, G12, A11, A33

If LAW=ISO the data for the *MATRIX keyword is:

*MATRIX, LAW=ISO
E, NU, A

Parameters

Data

*SOLVE

One (and only one) *SOLVE keyword must be present. This keyword gives the settings for the solving and output process.

*SOLVE, MATDIR=MATDIR

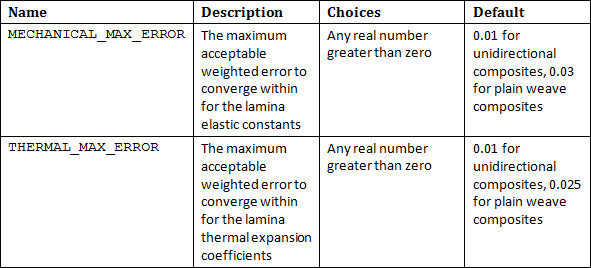

MECHANICAL_MAX_ERROR, THERMAL_MAX_ERROR

Parameters

Data

*FATIGUE

The *FATIGUE keyword is a child of *ENVIRONMENT. This keyword begins the definition of a material containing fatigue data.

Parameters

NONE

Data

NONE

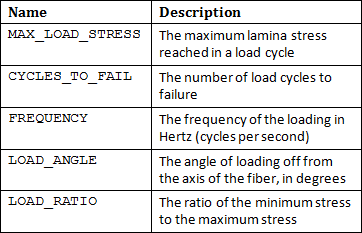

*SNDATA

The *SNDATA keyword is a child of *FATIGUE. This keyword begins the definition of the S-N fatigue data.

Parameters

NONE

Data

At least two data lines at a 0-2° load angle and two data lines at a 2-90° load angle are required to perform the optimization.
