Map Results
Now we are ready to map the fiber orientations to the structural model.
Click
Home
>
Mapping
>
Map Results
.
If not already visible, click
Home
>
View Results
>
Fiber Orientation
.

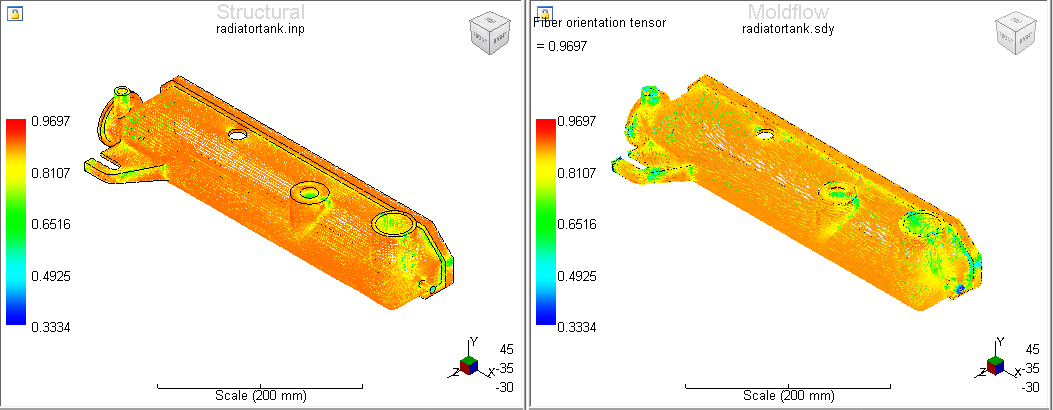

Rotate the model as necessary to examine the mapped results.
Parent topic:
Tutorial 2 - Analyze an Injection-Molded Radiator Tank
