Stairs - section

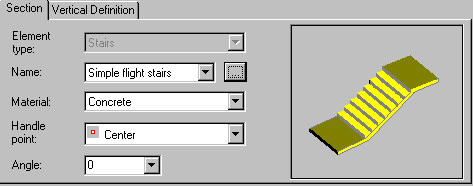

On the Section tab of the Stairs - definition dialog, you can define parameters of a solid shape (stairs).

Specify parameters for the stair cross-section:

• Stair section name - click the Browse (...) button and make a selection in the List of stairs dialog, or select a name from the list of available solids
• Material
• Handle point
  • Upper left
  • Upper right
  • Upper center
  • Center left
  • Center right
  • Center
  • Lower left
  • Lower right
  • Lower center

Angle of rotation of the stair cross-section - select an available value (0, 45, 90, 135, or 180) or enter a different value. The definition of this angle refers to the current (local) system of coordinates.
