Use this option to modify wire fabrics in the cross section of an RC structure element. There are several ways to access this option:
- Menu: Reinforcement > Modify > Reinforcement
- Ribbon: ASD - Reinforcement > Modify > Modify reinforcement
- Toolbar: Modify > Modify reinforcement
- Command line: RBCR_MOD_REINF.

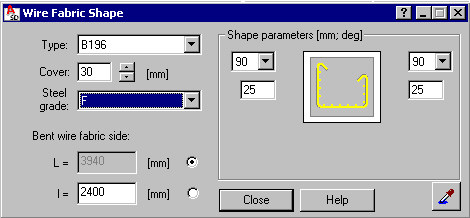

After selecting the option and a wire fabric in the cross section, the following dialog displays:
The following parameters of a wire fabric in the cross section can be modified:
- Wire fabric type (the current wire fabric type displays in the edit field)
- Wire fabric cover (the current wire fabric cover displays in the edit field)
- Reinforcing steel grade (the current steel grade is selected from the selection list)
- Bent wire fabric side (a shorter or longer wire fabric side should be selected)
- In the Shape parameters field - parameters of the hook ending of a wire fabric, i.e. a hook angle and length.
