Operations performed on steel profiles

The following operations are possible on defined steel profiles:

• A section through an indicated steel profile


  To make a section through a steel section:

  1. Indicate the beginning and end point of the section,
  2. Define section depth / direction,
  3. Select location of a drawing of the section through a steel profile.

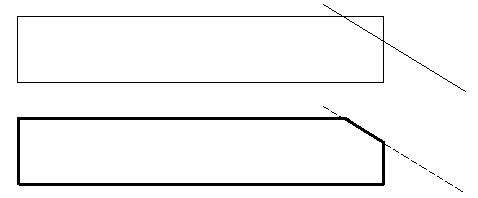

• Cutting the steel profile so that it fits the defined line


Cut the profile by specifying positions of two points that define a line. Additionally, a direction is indicated (a point on one side of the cutting line): it determines the object part that will be cut.
