Example: Place a building grid with 3 axes in the X-direction and in Y-direction

1. On the ribbon, click (Building Grid).
   • Home Objects (Building grid)
   • Objects Grid (Building grid)
2. Enter 0,0,0 on the command line to set the first point in the origin.
3. Enter 5000, 5000 to set the second point.

Note: Since two axis grids are created in the course of this command the properties dialog box does not appear.

Next, modify the axes number in each group.

1. Select the X-axis group.
2. Right click and select Advance Properties from the context menu. The Axes parallel dialog box appears. All modifications are made here.

To modify the number of axes:

1. Click the Group tab.

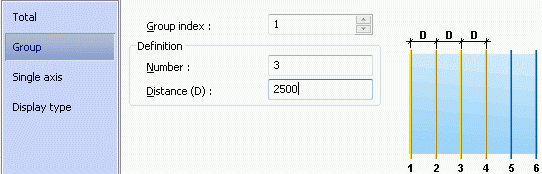

2. Set the Number to 3. Note that the distance value is automatically calculated. The new value should be 2500.



The model changes dynamically as values are entered or new values are selected, providing instant visual feedback.

Repeat the same steps for the axes in the Y-direction.
